Angie Monitor Ohrhörer / Jerry Harvey Audio
The siren series In-ear monitors are named after famous rock songs about women.
Jerry Harvey Audio produced a special version of the Roxanne tuned for the Astell&Kern in 2014.
The collaboration was so successful that the two companies will now release
two more models, Layla
The third offering in the “Siren Series” is aptly named after the Rolling Stones song "Angie".
Written by Mick Jagger and Keith Richards and recorded in November and December 1972, "Angie"
is an acoustic-guitar-driven ballad, which tells of the end of a romance. Richards, who wrote
almost all the music and lyrics for the song, claimed in his autobiography that the name Angie
was a pseudonym for heroin, and that the song was about his attempt to quit using it while detoxing in Switzerland.
The first new model is the Layla
. And this Angie is the little sister
. The dual low dual
mid and quad high configuration gives a very accurate representation of whatever source it has to
reproduce. The audio signature is reference quality. The Angie has the same 4th order crossover
network as Layla
. The Angie bass response is perfectly flat when
attenuated or up to +10 db of bass boost at 60hz when boosted.
JHA is proud to partner with Astell&Kern.
The Siren Serien Universal fit IEMs plus the Astell&Kern high-res players lets you to hear the music
how the Recording Artist and Mix Engineer intended.
is the 1st earpiece I've designed to be a reference/mastering IEM. And this Angie is
the little sister to Layla
. The dual low dual mid and quad high configuration gives a very accurate
representation of whatever source it has to reproduce. The audio signature is reference quality. The Angie
has the same 4th order crossover network as Layla
. The Angie bass response is perfectly flat when attenuated
or up to +10 db of bass boost at 60hz when boosted. The Angie also has the most sophisticated crossover
network ever put into an IEM. The shape of all crossover filters are all 4th order. This crossover circuit
combined with the Freqphase waveguide and new proprietary drivers deliver an audio quality that will truly
put you at the mix position in the recording studio whether it's hearing exactly what the mixer/producer
and band wanted you to hear, mixing your own tracks or performing live.
- Jerry Harvey -
Reference/mastering IEM from Jerry Harvey Audio
All new proprietary Driver designs
This series of IEM’s were designed to be used as a Mastering reference tool because
the high driver was designed for optimum top end extension with minimal distortion.
The mid driver is perfectly flat from 10hz to 5khz. Low driver designed for steeper
low pass and with virtually no distortion.
SoundrIVe Technology (Quad Driver Technology)
Angie was equipped with soundrIVe Technology, using Jerry Harvey Audio’s proprietary
mini quad drivers. 8 drivers [Dual Low, Dual Mid, Quad High] configuration that offers
the widest frequency range you’ll ever hear.
Stainless Steel Tube Waveguide. FreqPhase corrects Time and Phase of multiple Drivers.
The Waveguide ensures each driver signal arrives within .01 milliseconds, resulting in a Phase coherent IEM.

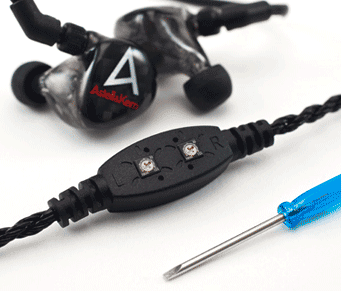

Variable BASS output Adjustable Cable
Variable bass output, adjustable from cable; user controlled low frequency drivers with the
adjustable bass (0 to +10dB). Frequency ranges from flat bass response up to +15dB. (10Hz to 100 Hz)

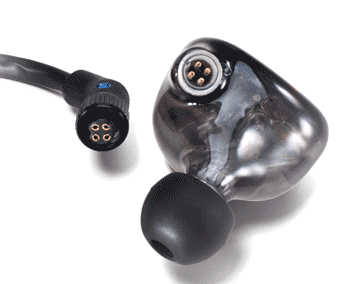

4-pin Cable Connection with Machined Aluminum Locking Collar
4-pin cable connection with Machined Aluminum Collar mechanism provides a more secure and
strong connection with earpiece and will also help to protect it from sweat and dust.
Additional Balance Cable for Astell&Kern
provides a full balance output with its specific 2.5mm 4pole terminal.
is originally designed and tuned for the AK240 balance output and provides
a balanced cable specially made to connect to the AK240.
Hand Crafted IEM made in the USA
Jerry Harvey Audio is proud to manufacture Angie by using old school craftsmanship,
while using the most cutting edge Technology.
Unique Red “Chrome” Finish with Black Bezel and Carbon Fiber Insert
Technische Daten Angie Monitor Ohrhörer
|Universal fit IEM
|Custom-made Balanced Armature Driver [8ea per side]
|10hz to 23 khz
|117 db @ 1 mW
|Angie Universal Fit Earphone, Machined Aluminum Billet Carrying Case,
Variable Bass output adjustable cable [3.5mm 3pole & 2.5mm 4pole balance],
Rubber Ear tips [large, medium, small],
Form Ear Tips [large, medium, small],
Screw Driver for Adjusting Bass, Wax tool
