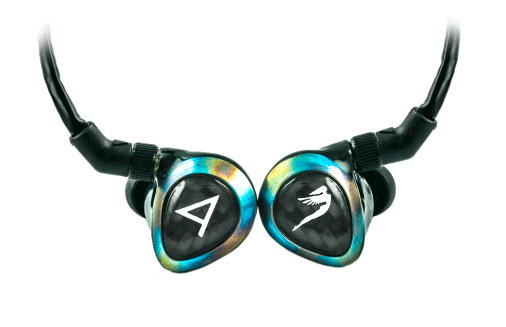

Layla Monitor Ohrhörer/ Jerry Harvey Audio
[ nicht mehr lieferbar/not available* ]
The siren series In-ear monitors are named after famous rock songs about women.
Jerry Harvey Audio produced a special version of the Roxanne tuned for the
Astell&Kern in 2014. The collaboration was so successful that the two companies
will now release two more models.
The first new model is the Layla. This all new flagship model is nothing short of
stunning visually as well as sonically. The second in the “Sirens Series” line,
it is worthy of being named after possibly the most famous love song in Rock history.
Recorded By Eric Clapton, with his band Derek and the Dominos and released in 1970 on
Layla and other Love songs. Layla was inspired by Clapton's unrequited love for Pattie
Boyd, the wife of his friend George Harrison.
JHA is proud to partner with Astell&Kern.
The Siren Serien Universal fit IEMs plus the Astell&Kern high-res players lets you to hear the music
how the Recording Artist and Mix Engineer intended.
The Layla is the 1st earpiece I've designed to be a reference/mastering IEM.
Most IEMs I design have a live rock and roll tuning with a little more emphasis
on the lows and low mids, accurate but warm. The Layla bass response when turned
down is perfectly flat and when fully turned up has +13db of boost at 60Hz.”
The Layla also has the most sophisticated crossover network ever put into a IEM.
The shape of all crossover filters are all 4th order. This crossover circuit combined
with the Freqphase waveguide and new proprietary quad drivers deliver an audio quality
that will truly put you at the mix position in the recording studio whether it's hearing
exactly what the mixer/producer and band wanted you to hear, mixing your own tracks or performing live.
- Jerry Harvey -
The 1st reference/mastering IEM from Jerry Harvey Audio
All new proprietary Driver designs
This series of IEM’s were designed to be used as a Mastering reference tool because
the high driver was designed for optimum top end extension with minimal distortion.
The mid driver is perfectly flat from 10hz to 5khz. Low driver designed for steeper
low pass and with virtually no distortion.
SoundrIVe Technology (Quad Driver Technology)
Layla was equipped with soundrIVe Technology, using Jerry Harvey Audio’s proprietary
mini quad drivers. Layla has a triple quad driver (12 drivers) configuration that
offers the widest frequency range you’ll ever hear.
Stainless Steel Tube Waveguide. FreqPhase corrects Time and Phase of multiple Drivers.
The Waveguide ensures each driver signal arrives within .01 milliseconds, resulting in a Phase coherent IEM.
Variable BASS output Adjustable Cable
Variable bass output, adjustable from cable; user controlled low frequency drivers with the
adjustable bass (0 to +15dB). Frequency ranges from flat bass response up to +10dB. (10Hz to 100 Hz)
4-pin Cable Connection with Machined Aluminum Locking Collar
4-pin cable connection with Machined Aluminum Collar mechanism provides a more secure and
strong connection with earpiece and will also help to protect it from sweat and dust.
Additional Balance Cable for Astell&Kern
provides a full balance output with its specific 2.5mm 4pole terminal.
Layla is originally designed and tuned for the AK240 balance output and provides
a balanced cable specially made to connect to the AK240.
Hand Crafted IEM made in the USA
Jerry Harvey Audio is proud to manufacture Layla by using old school craftsmanship,
while using the most cutting edge Technology.
Full carbon Fiber Body with “Burnt” titanium Bezel and Carbon Fiber Insert
Technische Daten Layla Monitor Ohrhörer
||Universal fit IEM
||Custom-made Balanced Armature Driver [12ea per side]
||10hz to 23 khz
||117 db @ 1 mW
||Layla Universal Fit Earphone, Carbon Fiber and Black aluminum Carrying Case,
Variable Bass output adjustable cable [3.5mm 3pole & 2.5mm 4pole balance],
Rubber Ear tips [large, medium, small],
Form Ear Tips [large, medium, small],
Screw Driver for Adjusting Bass, Wax tool
*nicht mehr im Vertrieb von R. Ross AP GmbH/not in distribution R. Ross AP GmbH
